Formadora automática de cajas Superbox 60 HD

Formadora automática de cajas Superbox 60 HD

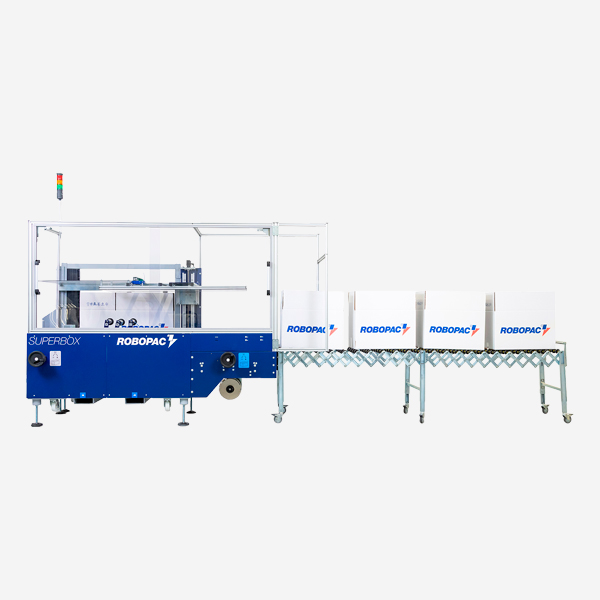

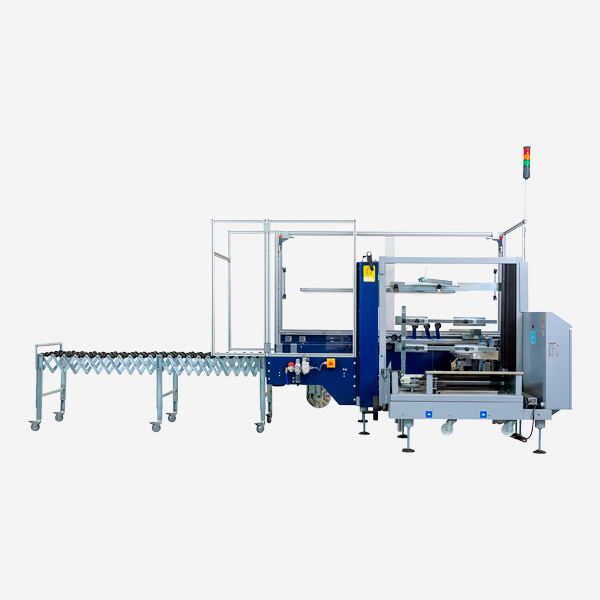

This automatic carton erector consists of a carton magazine, an area where the cartons are opened and an outfeed roller conveyor on which the belt is applied to the carton base. The format changeover is conveniently adjusted by means of 5 cranks, and then the reference points of the carton magazine and the position of the suction cups are adjusted one after the other.

Forming material: cartons

Production capacity: 720 pieces / hour depending on the format.

The machine is mainly composed of:

• Carefully treated metal carpentry structure.
• Almacén de gravedad para 50/60 cajas o almacén motorizado para 100/120 cajas.
• Carton extraction and opening unit, with patented system.
• Carton trailer unit.
• Pneumatically operated box opening and flap closing.
• Automatic closing unit of the bottom of the carton with adhesive tape.
• Anti-accident protections, possibility of opening according to safety standards.

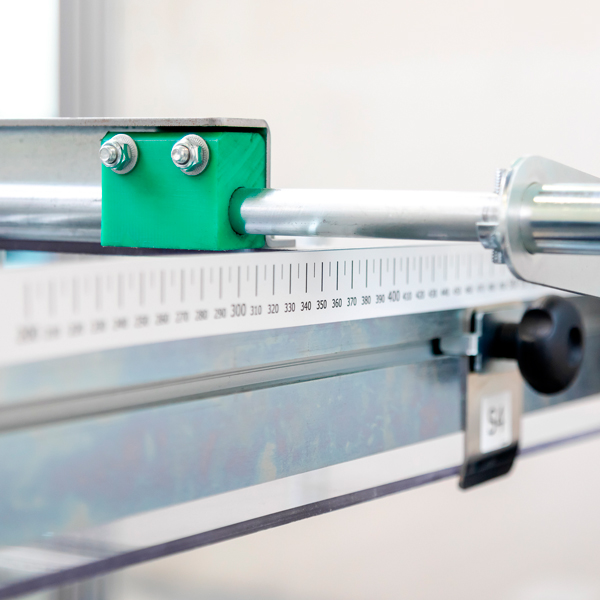

• Size changeover by means of crank handle and millimeter stops.
• Handles with retractable lever.
• Tractor unit with side conveyor belts (H = 60 mm) with fixed speed.
• Automatic stop when the carton magazine is empty.
• PLC: Schneider.
• Cycle type selection: continuous cycle or batches Single "Step" cycle Manual break notes Tape allow batch reset (enabled only if batch cycle is active) Service skip selection (phases) of 20 recipes.
• Supply voltage 400 V. 3 Ph - 50 HZ +T (others on request).
• Total installed power: 1 Kw.
• Pneumatic installation: 6 + 1 bar.
• Air consumption 350 Nl/1′.
• Attention! For fine-tuning and final testing, it is essential to always have a batch of boxes with all the measurements used by the customer.
• The electrical equipment has the safety requirements requested by the European standards CEI EN 60204-1 (CEI classification: 44-5). The electrical cabinet is equipped as follows: power supply disconnecting device, equipment protection, potential protection circuit, power circuit, command circuits and functions, control equipment and commands, emergency lockout, protections and starting devices (start-up), electrical documentation.
• The machine complies with EC directives 89/392 EEC - 91/368/EEC - 93/44/EEC - 93/68/EEC - 89/336/EEC - 72/23/EEC.
• Power 220 V single-phase 50Hz.

Case erector that can be integrated into fully automatic case forming, filling and sealing lines.

RCONNECT

Innovation and connection to customer service.

CONTROL PANEL

New interface with JOG parameter selector and 3.5 inch color display.

Cycle type selection: continuous cycle or batches.

Single cycle "Paso".

Manual breakage notes.

Tape allow batch reset (enabled only if batch cycle is active).

Selection of service jump (phases) of 20 recipes.

VENTOSAS GROUP

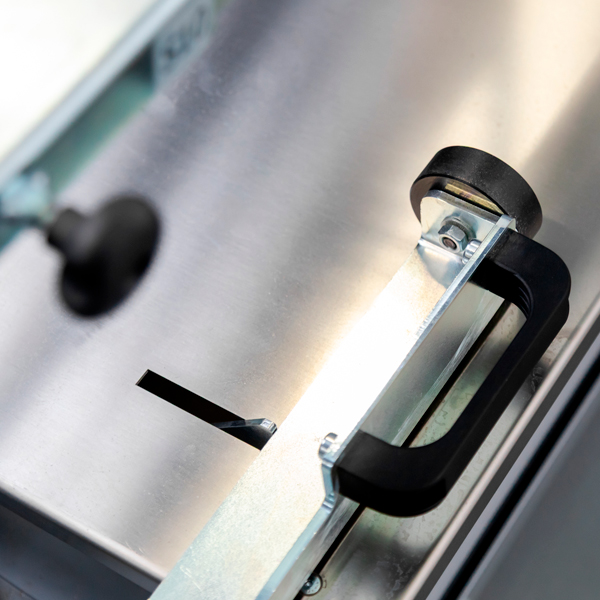

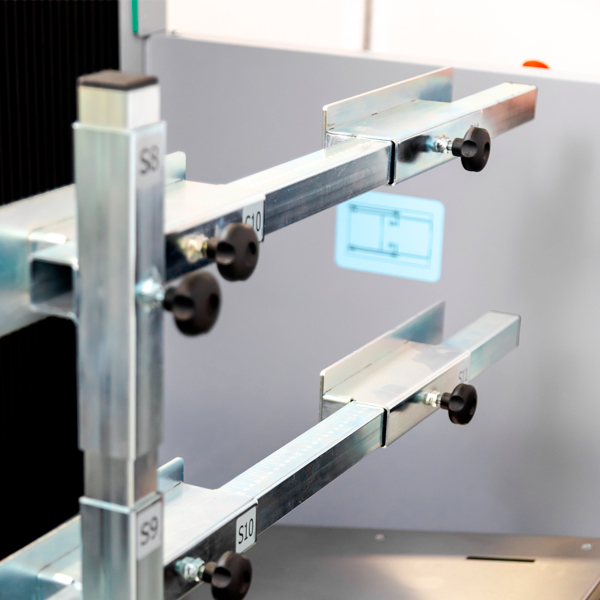

The format changeover is conveniently adjusted by means of 5 handwheels, and then the carton magazine and the position of the suction cups can be adjusted.

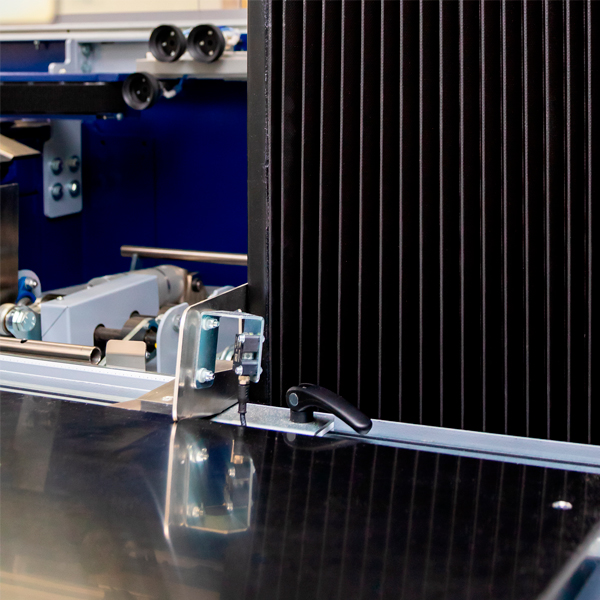

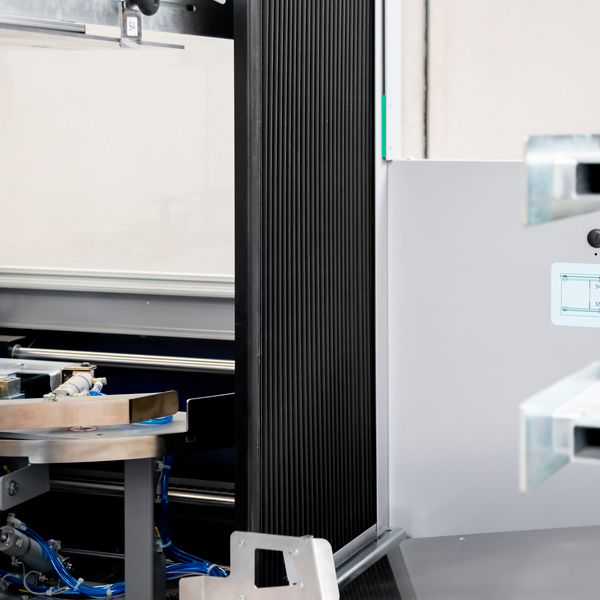

CARTON WAREHOUSE

The machine consists of a magazine for the cartons, an area where the cartons are opened and an outfeed roller conveyor where the cartons are sealed at the base.

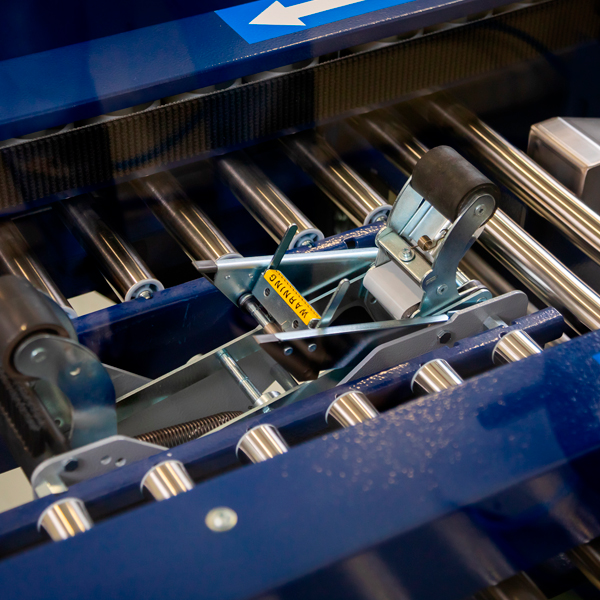

LOWER SEALING GROUP

Bottom sealing of cartons with Tapecontrol - visual and audible alarm for seal breakage detection.

Machine dimensions
