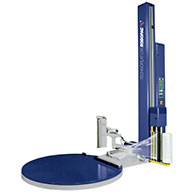

Technoplat
The Technoplat CS and CW are automatic wrapping machines and represent the innovative solution for fully automatic pallet wrapping. The machine has the Clamp and Film Cutting Unit with applicator in the CS version and sealer in the CW version that ensure the hooking, cutting and coating or sealing of the film glue that remains perfectly adherent to the pallet.
- Description
- Features
- Videos
- Technical characteristics
- Spare parts
- Ratings (0)
Description
Technoplat
Technoplat automatic rotary table stretch wrappers are the ideal solution to optimize and streamline the pallet wrapping process. These machines, designed with state-of-the-art technology, offer maximum efficiency, precision and reliability, making them a profitable investment for any business.
Main features of automatic of the automatic wrapping machines with rotary table
- Rotary table: Allows a smooth and controlled turning of the pallet, ensuring a uniform and complete wrapping.
- Clamp and cut system: The operator only has to use the remote control to complete this operation, without the need to be aware of it, thus being able to perform other activities.
- Multilevel control panel: Intuitive panel that facilitates the operation and programming of the machine, allowing to adjust the wrapping parameters according to the specific needs of each product.
- Robustness and reliability: Built with high quality materials, Technoplat stretch wrappers are designed to withstand intensive use and guarantee a long service life.
Benefits
- Increased productivity: The packaging process is carried out automatically, freeing operators for other tasks.
- Cost reduction: Film consumption is optimized, resulting in significant cost savings.
- Improved safety: By eliminating the need to manually wrap pallets, the risk of workplace accidents is minimized.
- Optimal product protection: Uniform and robust packaging ensures that products are protected against moisture, dust and other external agents during transport and storage.
Technical characteristics
| Machine | Technoplat CS | Technoplat CW |
|---|---|---|
| Number of wheels (n.) | 16 (8 double) | 16 (8 double) |
| Plate capacity (kg) | 2000 | 2000 |
| Plate diameter (mm) | 1650 | 1650 |
| Useful mast height (mm) | 2200 | 2200 |
| Rotor speed (RPM) | 4÷12 | 4÷12 |
| Cart type | FR-PDS-PVS | FR-PDS-PVS |
| Front and rear forks | STD | STD |
| Power supply (VAC) | 230 single phase (±20%) | 230 single phase (±20%) |
| Power frequency (Hz) | 50/60 | 50/60 |
| Installed power (kW) | 2÷3,2 | 2,5÷3,7 |
| Remote control and receiver kit | STD | STD |
| Phase stop | STD | STD |
| Progressive start-up | STD | STD |
| Adjustable frame carriage up/down speed (m/min) | 1÷4 | 1÷4 |
| Fococcell reading load height | STD | STD |
| Variable rotation speed | STD | STD |
Technical characteristics
| Pallet type | 1/2 EUR 80×60, 1/4 EUR 60×40, EUR 80×120, IND 120×120, UK 100×120 |
|---|---|
| Product to be packed | Pallet |
| Pallet height | 300 - 3,100 mm, 800 - 3,100 mm |
| Load weight | 100 - 2.000 Kg, 150 - 1.200 Kg, 150 - 1.500 Kg |
| Hourly production | 0 - 05 p/h, 0 - 10 p/h, 0 - 15 p/h, 0 - 20 p/h |
| Load medium | Forklift, Forklift truck, Hand pallet truck, Hand pallet truck |
| Type of operation | Fixed |
| Load stability | High, Low, Medium |
-
